DIN 3129

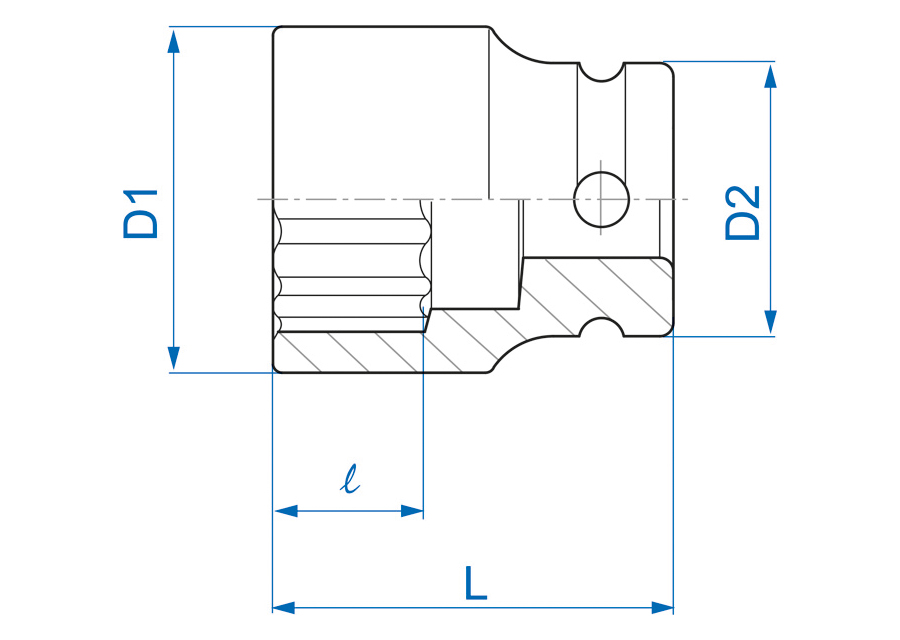

Dimensioni
(mm) |
D1
(mm) |
D2
(mm) |
L
(mm) |
l
(mm) |
Peso
(g) |
PDV
(I.V.A esclusa) |
|||
---|---|---|---|---|---|---|---|---|---|
453008M | 8 | 14.5 | 25 | 38 | 7 | 67 | 7,19€ | ||
453009M | 9 | 16.3 | 25 | 38 | 7 | 68 | 7,19€ | ||
453010M | 10 | 17 | 25 | 38 | 8 | 70 | 7,54€ | ||
453011M | 11 | 18.5 | 25 | 38 | 8 | 71 | 7,19€ | ||
453012M | 12 | 19.5 | 25 | 38 | 9 | 72 | 7,19€ | ||
453013M | 13 | 20.5 | 25 | 38 | 10 | 72 | 7,54€ | ||
453014M | 14 | 22 | 25 | 38 | 10 | 77 | 7,54€ | ||
453015M | 15 | 23.2 | 30 | 38 | 11 | 112 | 8,88€ | ||
453016M | 16 | 24.5 | 30 | 38 | 11 | 112 | 8,88€ | ||
453017M | 17 | 26.2 | 30 | 38 | 12 | 115 | 8,88€ | ||
453018M | 18 | 27.2 | 30 | 38 | 13 | 115 | 8,88€ | ||
453019M | 19 | 28.2 | 30 | 38 | 13 | 120 | 10,87€ | ||
453020M | 20 | 29.5 | 30 | 38 | 13 | 120 | 10,34€ | ||
453021M | 21 | 30 | 30 | 40 | 14 | 125 | 10,87€ | ||
453022M | 22 | 32 | 30 | 40 | 14 | 143 | 10,87€ | ||
453023M | 23 | 33.2 | 30 | 40 | 15 | 143 | 11,45€ | ||
453024M | 24 | 34.5 | 30 | 42 | 15 | 152 | 12,04€ | ||
453025M | 25 | 36 | 30 | 42 | 15 | 168 | 12,68€ | ||
453026M | 26 | 37 | 30 | 42 | 15 | 173 | 12,68€ | ||
453027M | 27 | 38 | 30 | 44 | 16 | 176 | 12,68€ | ||
453028M | 28 | 41 | 30 | 44 | 16 | 205 | 14,84€ | ||
453029M | 29 | 41 | 30 | 44 | 17 | 184 | 14,84€ | ||
453030M | 30 | 42.5 | 30.5 | 44 | 17 | 201 | 15,60€ | ||
453032M | 32 | 44.5 | 30 | 44 | 18 | 205 | 15,42€ | ||
453033M | 33 | 46 | 30 | 46 | 19 | 246 | 19,98€ | ||
453034M | 34 | 45 | 30 | 46 | 18 | 231 | 21,50€ | ||
453036M | 36 | 47 | 30 | 46 | 19 | 248 | 25,06€ | ||
453038M | 38 | 50 | 30 | 50 | 21 | 248 | 23,89€ | ||
453041M | 41 | 56 | 30 | 52 | 22 | 402 | 23,89€ |
