1" Standard 6 points impact socket

1" Standard 6 points impact socket

35,78 €

ANSI / ASME B107.1

  • Inch

  • Chrome molybdenum, phosphate finish

Ref.: 8535S

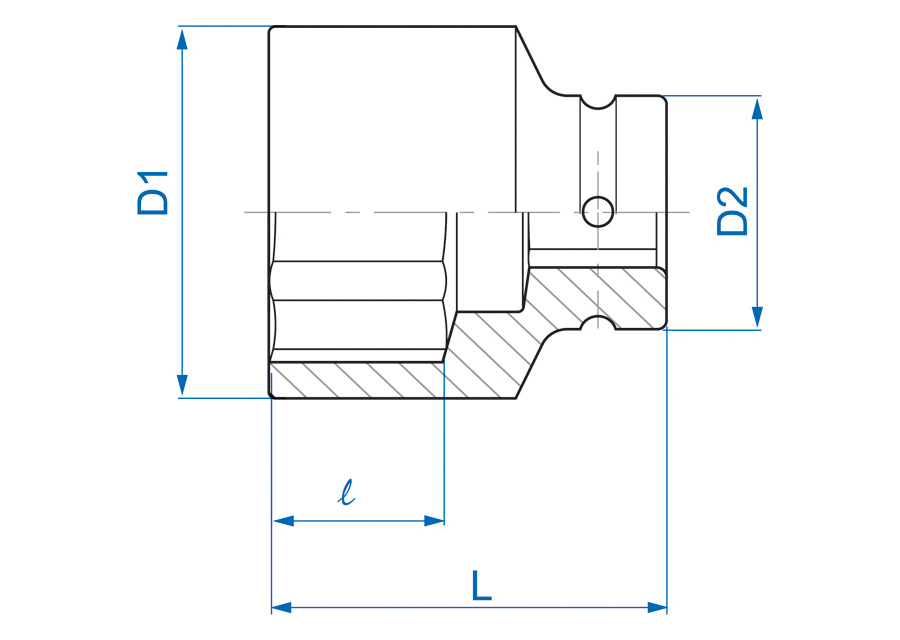

Dimension
(Inch) 		D1
(mm) 		D2
(mm) 		L
(mm) 		l
(mm) 		Weight
(g) 		RRP
(excl. VAT)
*
853524S 3/4" 35 54 58 15 508 €29.56
853526S 13/16" 37 54 58 15 529 €29.56
853528S 7/8" 38 54 58 15 520 €29.56
853530S 15/16" 41 54 58 17 529 €29.92
853532S 1" 42 54 58 17 567 €29.92
853534S 1-1/16" 44 54 58 19 538 €29.92
853536S 1-1/8" 47 54 58 19 600 €30.04
853540S 1-1/4" 51 54 62 20 679 €30.47
853542S 1-5/16" 52 54 62 20 700 €30.47
853544S 1-3/8" 54 54 62 20 779 €30.83
853546S 1-7/16" 56 54 65 20 729 €30.83
853548S 1-1/2" 58 54 65 22 742 €30.83
853550S 1-9/16" 60 54 65 22 800 €31.98
853552S 1-5/8" 61 54 70 22 846 €32.71
853554S 1-11/16" 64 54 70 22 890 €33.44
853556S 1-3/4" 67 54 70 26 1000 €36.16
853558S 1-13/16" 68 54 75 26 1075 €39.07
853560S 1-7/8" 70 54 75 26 1085 €39.55
853562S 1-15/16" 72 54 75 26 1140 €41.55
853564S 2" 74 54 75 30 1235 €42.28
853566S 2-1/16" 75 54 80 30 1300 €59.72
853568S 2-1/8" 78 54 80 30 1400 €62.99
853570S 2-3/16" 79 54 83 32 1433 €64.93
853572S 2-1/4" 82 54 83 32 1500 €71.65
853574S 2-5/16" 83 54 83 32 1542 €71.65
853576S 2-3/8" 86 54 87 32 1758 €88.07
853578S 2-7/16" 88 54 87 34 1760 €88.61
853580S 2-1/2" 90 54 87 34 1750 €89.34
853582S 2-9/16" 92 54 90 34 1758 €94.30
853584S 2-5/8" 94 54 90 34 1966 €96.97
853586S 2-11/16" 95 54 90 34 1966 €98.06
853588S 2-3/4" 97 54 93 34 2112 €133.12
853590S 2-13/16" 99 86 93 36 2925 €149.30
853592S 2-7/8" 102 86 93 36 3050 €160.62
853594S 2-15/16" 104 86 95 36 3188 €163.04
853596S 3" 106 86 95 36 3205 €163.71
8535A0S 3-1/8" 110 86 95 43 3350 €181.90
8535A4S 3-1/4" 112 86 95 43 3300 €181.90
8535A8S 3-3/8" 117 86 100 43 3550 €197.63
8535B2S 3-1/2" 122 86 100 43 3950 €211.75
